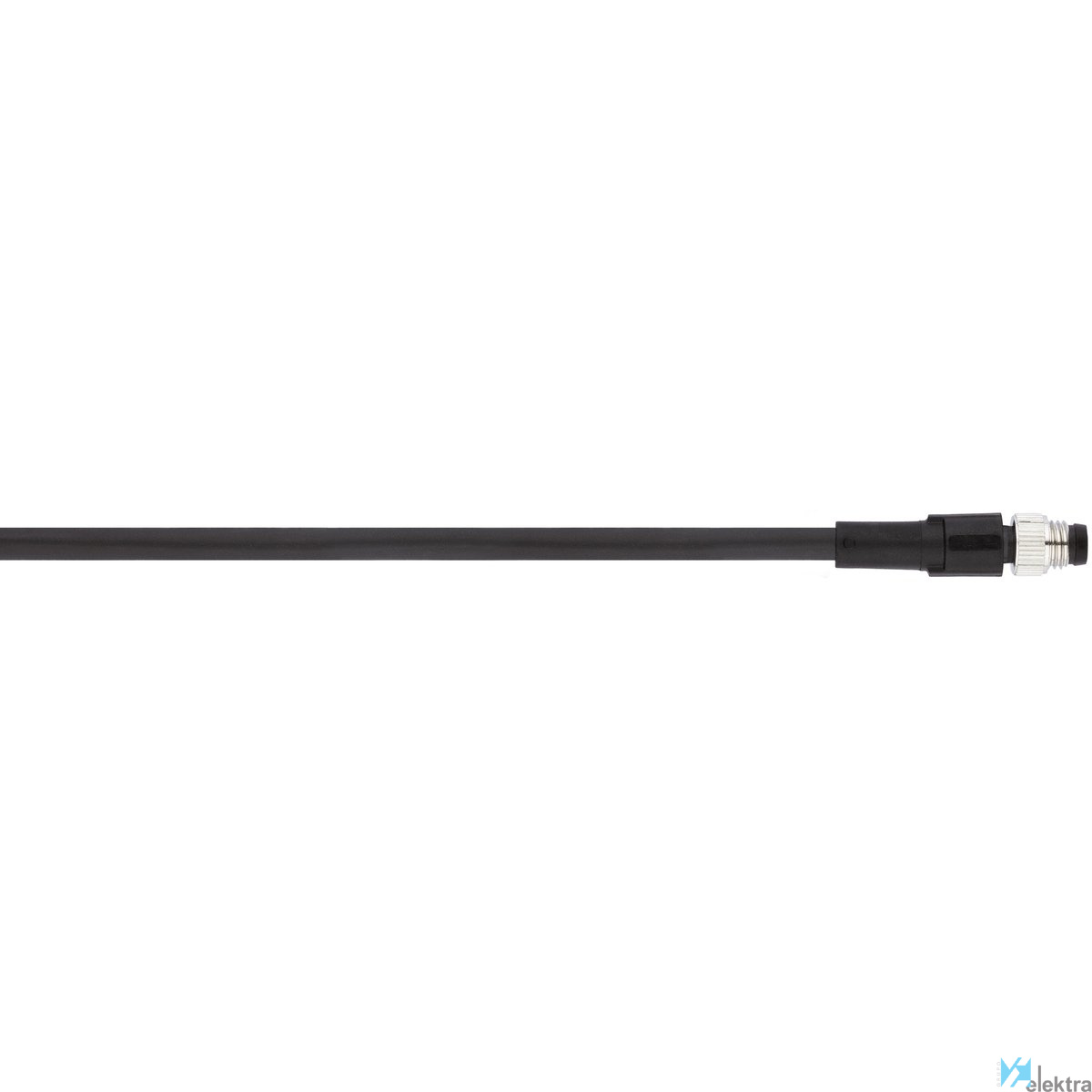

LAPP 22260318 AB-C4-M8MS-10,0PUR CONECTOR M8 4P MA

Entrega a consultar

(Ver +)

Múltiplo venta: 1,00 uds.

2.417,44€/C

Impuestos no incluidos.

Enviar a un amigo

Principales ventajas

Dimensions: Deviations from the stated dimensions are possible
The deviations are due to different cutting processes internally and at the supplier and to different cable drums (Lapp and supplier cable drums)
;Country of origin: The countries of origin listed refer only to the main supplier for the corresponding products
As LAPP obtains its goods and raw materials from various sources, the actual country of origin can only be bindingly listed on the delivery note
;Delivery time: Delivery times refer to items in stock

Si estás buscando algún producto con urgencia y no lo encuentras, ponte en contacto con nosotros y trataremos de conseguírtelo rápidamente.

Puedes escribirnos un email o llamarnos por teléfono:

Buscar Punto de Venta

LAPP 22260318 AB-C4-M8MS-10,0PUR CONECTOR M8 4P MA

Can be used universally on machine interfaces for many applications in data and signal transmission. The cable design allows flexible, continuously moving use in moving machine parts and in cable chains. Can be used in dry and damp conditions, and especially in harsh and oily environments. The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals. The PUR outer sheath and connectors withstand high mechanical stresses. Can be used universally on machine interfaces for many applications in data and signal transmission. The cable design allows flexible, continuously moving use in moving machine parts and in cable chains. Can be used in dry and damp conditions, and especially in harsh and oily environments. The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals. The PUR outer sheath and connectors withstand high mechanical stresses.

Características detalladas

Tipo de cable Multiconductor

Tensión nominal 60 V

Longitud de cable 10 m

Armadura No

Número de polos 4

Material de recubrimiento del contacto Níquel/oro

Irradiado No

Material de la vaina del cable Poliuretano (PUR)

Grado de protección (IP) IP68

Ejecución de conexión eléctrica, lado de carc M8

Ejecución de conexión eléctrica, lado de camp Extremo libre

Disposición de la entrada de cable, en el lad Recto

Material del cuerpo de contacto CuSn

Color de la vaina del cable Negro

Corriente nominal In 4 A

Tipo de contacto enchufable, lado de la caja Macho (enchufe)

Embalaje 1

Cantidad mínima embalaje: 1
Cantidad máxima embalaje: 1
Medidas: 0,18 x 0,18 x 0,03 (m)
Volumen: 0,00 m3
Peso: 0,00 kg
