LAPP 22260324 AB-C4-2,0PUR-M12FA CONECTOR M12 4P H

Entrega a consultar

(Ver +)

Múltiplo venta: 1,00 uds.

1.289,02€/C

Impuestos no incluidos.

Enviar a un amigo

Principales ventajas

Dimensions: Deviations from the stated dimensions are possible
The deviations are due to different cutting processes internally and at the supplier and to different cable drums (Lapp and supplier cable drums)
;Country of origin: The countries of origin listed refer only to the main supplier for the corresponding products
As LAPP obtains its goods and raw materials from various sources, the actual country of origin can only be bindingly listed on the delivery note
;Delivery time: Delivery times refer to items in stock

Si estás buscando algún producto con urgencia y no lo encuentras, ponte en contacto con nosotros y trataremos de conseguírtelo rápidamente.

Puedes escribirnos un email o llamarnos por teléfono:

Buscar Punto de Venta

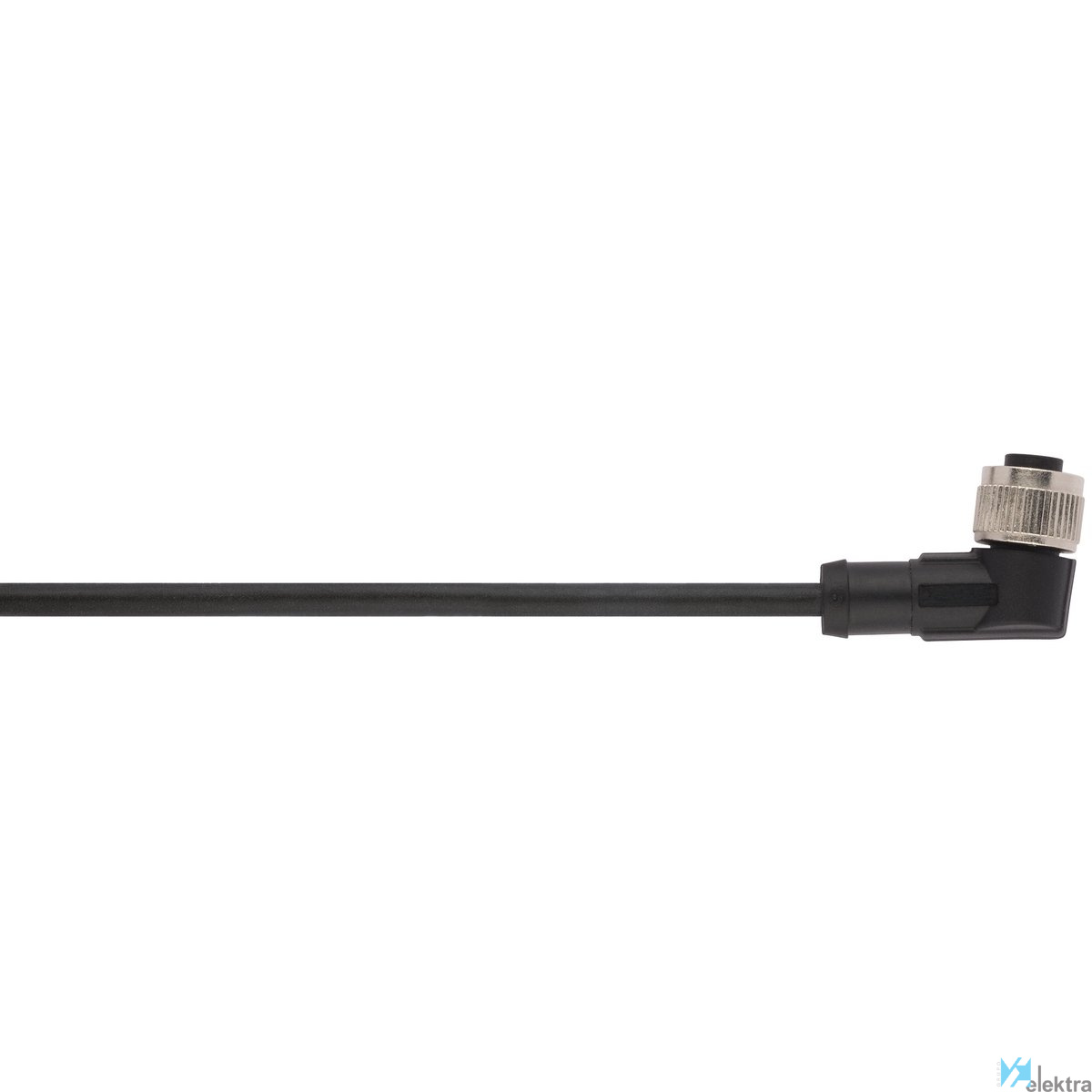

LAPP 22260324 AB-C4-2,0PUR-M12FA CONECTOR M12 4P H

Can be used universally on machine interfaces for many applications in data and signal transmission. The cable design allows flexible, continuously moving use in moving machine parts and in cable chains. Can be used in dry and damp conditions, and especially in harsh and oily environments. The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals. The PUR outer sheath and connectors withstand high mechanical stresses. Can be used universally on machine interfaces for many applications in data and signal transmission. The cable design allows flexible, continuously moving use in moving machine parts and in cable chains. Can be used in dry and damp conditions, and especially in harsh and oily environments. The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals. The PUR outer sheath and connectors withstand high mechanical stresses.

Características detalladas

Tipo de cable Multiconductor

Tensión nominal 250 V

Longitud de cable 2 m

Armadura No

Número de polos 4

Irradiado No

Material de la vaina del cable Poliuretano (PUR)

Grado de protección (IP) IP68

Ejecución de conexión eléctrica, lado de carc Extremo libre

Disposición de la entrada de cable, lado de c En ángulo

Tipo de contacto enchufable, lado de campo Hembra (bus)

Color de la vaina del cable Negro

Corriente nominal In 4 A

Embalaje 1

Cantidad mínima embalaje: 1
Cantidad máxima embalaje: 1
Medidas: 0,15 x 0,15 x 0,02 (m)
Volumen: 0,00 m3
Peso: 0,00 kg
