Cod. 1003066   EAN 4044777382866

LAPP GROUP

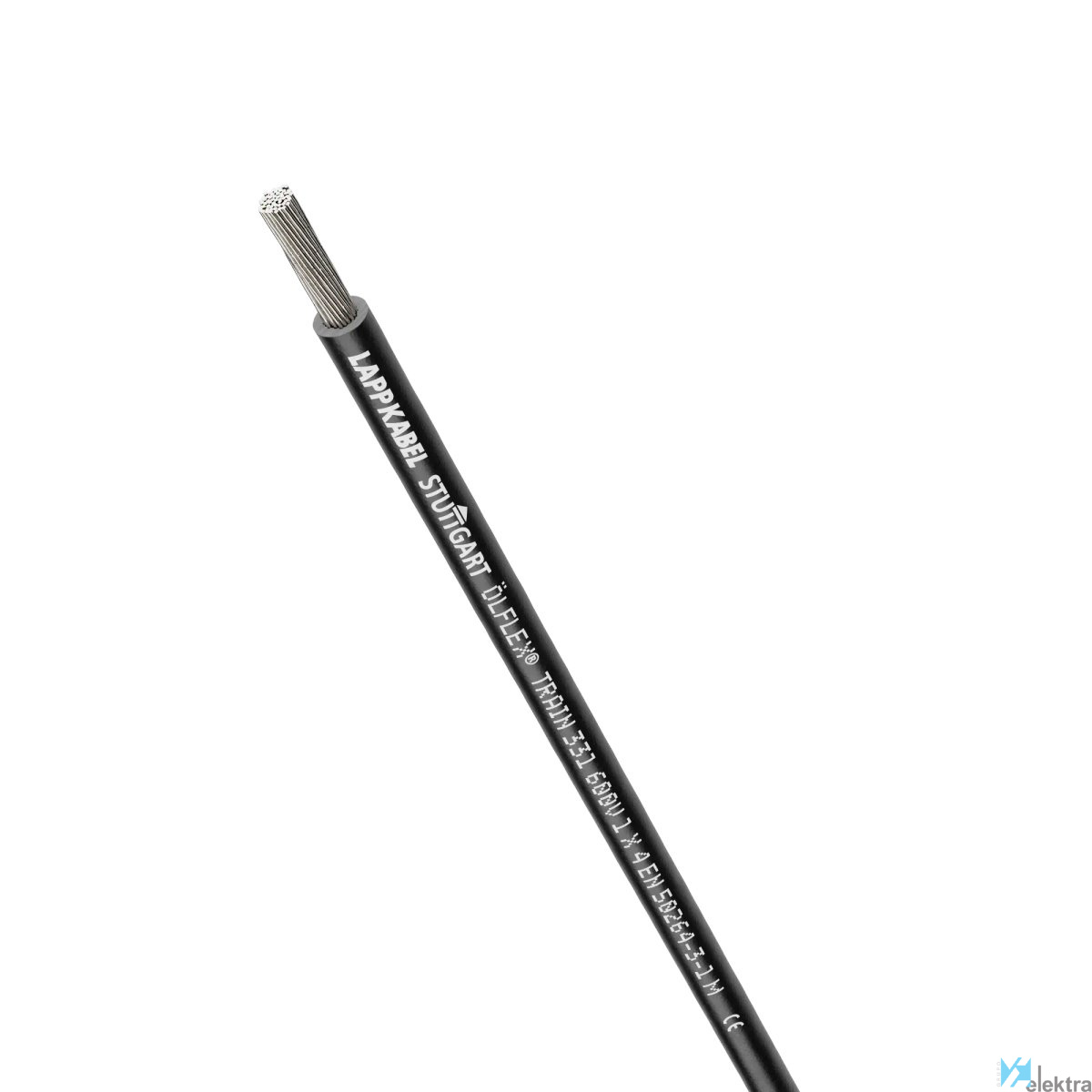

LAPP 15331024 OLFLEX TRAIN 331 600V 1X25 GNYE

Entrega a consultar

  (Ver +)

Múltiplo venta: 1,00 uds.

CONSULTAR



Principales ventajas

  • Dimensions: Deviations from the stated dimensions are possible
  • The deviations are due to different cutting processes internally and at the supplier and to different cable drums (Lapp and supplier cable drums)
  • ;Country of origin: The countries of origin listed refer only to the main supplier for the corresponding products
  • As LAPP obtains its goods and raw materials from various sources, the actual country of origin can only be bindingly listed on the delivery note
  • ;Delivery time: Delivery times refer to items in stock

Si estás buscando algún producto con urgencia y no lo encuentras, ponte en contacto con nosotros y trataremos de conseguírtelo rápidamente.

Puedes escribirnos un email o llamarnos por teléfono:

Buscar Punto de Venta

LAPP 15331024 OLFLEX TRAIN 331 600V 1X25 GNYE

Your wish was our command: our single-core cables for railway vehicles are now also available in 0.5 and 0.75 mm² and in additional colours (BN, GN, YE, WH, GY, OG, VT). All articles are classified according to DIN EN 45545-2 and are also perfect for your application owing to the high-quality electron beam cross-linked insulation materials.. Wide range of uses in railway vehicles. Typical areas of application are the driver’s desk, inverters, control cabinets and panels, lighting, etc. For fixed, protected installation and for applications where limited movement can be expected. Can be used in dry and damp conditions, and especially in harsh and oily environments. The electron beam cross-linked polymer compound is highly resistant to oils, fuels, alkalis and acids. Black variants are suitable for outdoor use. Wide range of uses in railway vehicles. Typical areas of application are the driver’s desk, inverters, control cabinets and panels, lighting, etc. For fixed, protected installation and for applications where limited movement can be expected. Can be used in dry and damp conditions, and especially in harsh and oily environments. The electron beam cross-linked polymer compound is highly resistant to oils, fuels, alkalis and acids. Black variants are suitable for outdoor use.

Características detalladas

Sección nominal del conductor 25 mm²
Material de aislamiento del conductor Otros
Peso 273 kg/km
Retardante de llama Conforme a IEC/EN 60332-1-2
Integridad del circuito Ninguno
Tensión asignada U 1 kV
Material del conductor Cobre
Clase del conductor Clase 5 = flexible
Temperatura ambiente admisible del cable desp -40 ~120 °C
Tensión asignada U0 0.6 kV
Pantalla No
Número de hilos 1
Sin halógenos según EN IEC 60754-2 No
Conservación de aislamiento sdegún IEC 60331 No
Baja emisión de humos según EN IEC 61034-2 Sí
Con conductor de protección Sí
Baja opacidad de humos según EN 61034-2 Sí
Libre de halógenos según EN 60754-1/2 No
Resistente al aceite según IEC 60811-404 No
Superficie del conductor Estañado
Clase de reacción al fuego según EN 13501-6 Ninguno
Reacción al fuego según EN 13501-6: Producció Ninguno
Reacción al fuego según EN 13501-6: Gotas/par Ninguno
Reacción al fuego según EN 13501-6: Acidez Ninguno
Especificación aislamiento del conductor Otros
Geometría del cable Redondo
Identificación de los conductores aislados se No
Certificado para aplicaciones marinas No
Integridad del circuito según BS 6387 CWZ No
Integridad del circuito según EN 50200 No
Integridad del circuito según EN 50200 anexo No
Integridad del circuito según BS 8434-2 No
Integridad del circuito según BS 8491 No
Integridad del circuito según IEC 60331-3 No
Integridad del circuito según IEC 60331-21 No
Retardante de llama según EN 60332-1-2 Sí
Retardante de llama según EN 60332-3-21 (Cat No
Retardante de llama según EN 60332-3-22 (Cat No
Retardante de llama según EN 60332-3-23 (Cat No
Retardante de llama según EN 60332-3-24 (Cat No
Retardante de llama según EN 60332-3-25 (Cat Sí
Libre de halógenos según EN 60754-1 Sí
Libre de halógenos según EN 60754-2 No
Libre de halógenos según EN 60754-3 No

Embalaje 1

  • Cantidad mínima embalaje: 1
  • Cantidad máxima embalaje: 1
  • Medidas: 0,00 x 0,00 x 0,00 (m)
  • Volumen: 0,00 m3
  • Peso: 0,00 kg
