Cod. 1010484   EAN 4064727110318

LAPP GROUP

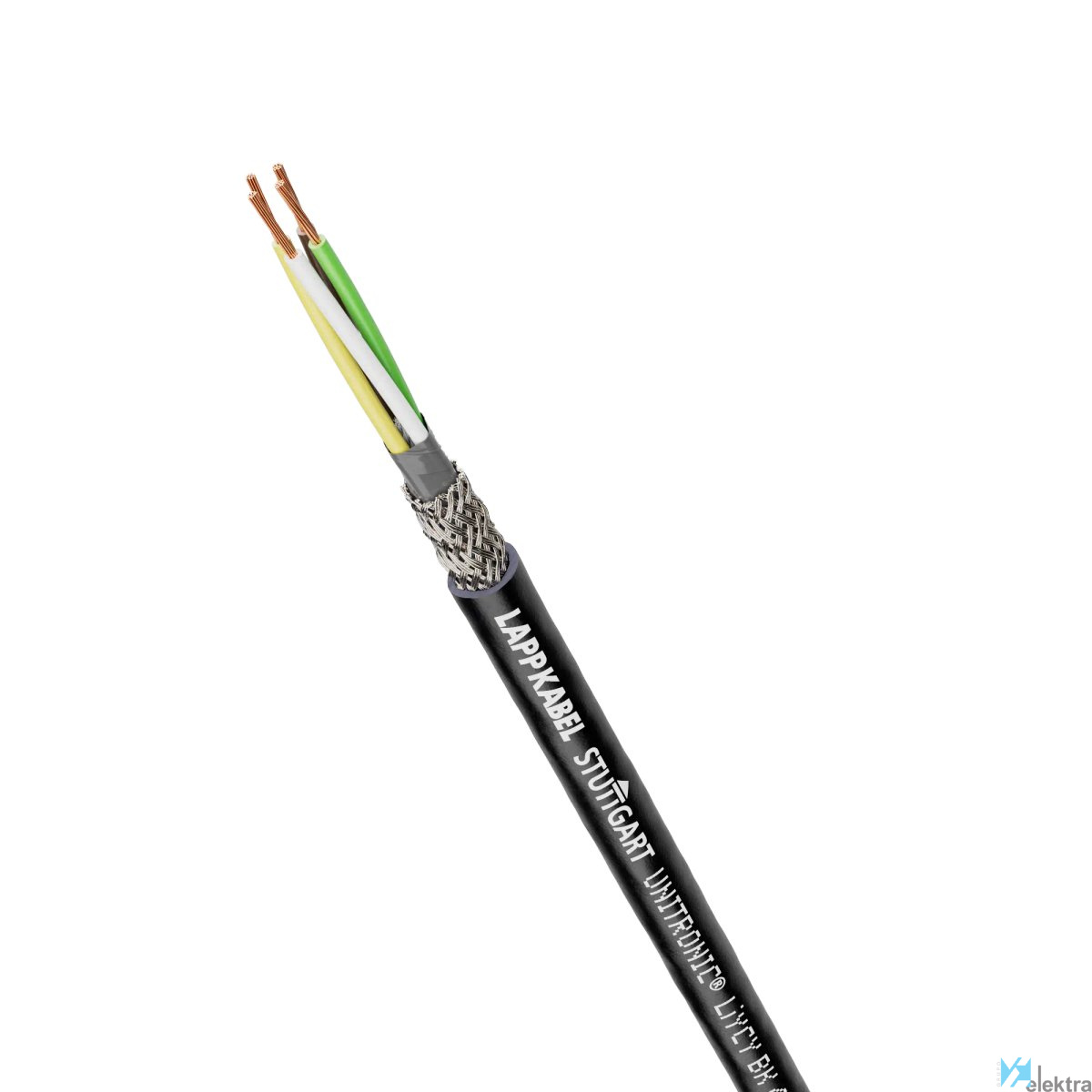

LAPP 1030477 UNITRONIC LiYCY 6x0,25 BK

Entrega a consultar

  (Ver +)

Múltiplo venta: 1,00 uds.

CONSULTAR



Principales ventajas

  • Dimensions: Deviations from the stated dimensions are possible
  • The deviations are due to different cutting processes internally and at the supplier and to different cable drums (Lapp and supplier cable drums)
  • ;Country of origin: The countries of origin listed refer only to the main supplier for the corresponding products
  • As LAPP obtains its goods and raw materials from various sources, the actual country of origin can only be bindingly listed on the delivery note
  • ;Delivery time: Delivery times refer to items in stock

Si estás buscando algún producto con urgencia y no lo encuentras, ponte en contacto con nosotros y trataremos de conseguírtelo rápidamente.

Puedes escribirnos un email o llamarnos por teléfono:

Buscar Punto de Venta

LAPP 1030477 UNITRONIC LiYCY 6x0,25 BK

Now also UV-resistant: from now on, we also offer you four PVC cables for data and signal transmission in the low-frequency range with a black outer sheath (BK) for outdoor use (in accordance with DIN EN ISO 4892-2). In addition to the classic UNITRONIC® LiYY BK, you can purchase UNITRONIC® LiYY (TP) BK with twisted pairs and shielded variants of these products (UNITRONIC® LiYCY (TP) BK and UNITRONIC® LiYCY BK). Take it outside!. Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range. Suitable for computer systems, electronic control and regulation devices, office machines, scales, etc. For fixed installation. Can be used in dry and damp environments. Suitable for light mechanical stress. The PVC outer sheath is somewhat oil-resistant. Suitable for outdoor use, subject to the temperature range. Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range. Suitable for computer systems, electronic control and regulation devices, office machines, scales, etc. For fixed installation. Can be used in dry and damp environments. Suitable for light mechanical stress. The PVC outer sheath is somewhat oil-resistant. Suitable for outdoor use, subject to the temperature range.

Características detalladas

Resistente a UV Sí
Sección nominal del conductor 0.25 mm²
Material de aislamiento del conductor Policloruro de vinilo (PVC)
Tipo de identificación de los conductores Color
Peso 58 kg/km
Retardante de llama Otros
Integridad del circuito Ninguno
Elemento de trenzado Otros
Color de cubierta exterior Negro
Categoría Otros
Material del conductor Cobre
Apantallado sobre elemento de trenzado Ninguno
Apantallado sobre trenzado Trenzado
Material de cubierta Policloruro de vinilo (PVC)
Clase del conductor Clase 5 = flexible
Temperatura exterior del cable permitida dura -5 ~70 °C
Temperatura ambiente admisible del cable desp -40 ~80 °C
Revestimiento de protección Policloruro de vinilo (PVC)
Número de hilos 6
Sin halógenos según EN IEC 60754-2 No
Conservación de aislamiento sdegún IEC 60331 No
Baja emisión de humos según EN IEC 61034-2 No
Trenzado Capas
Diámetro exterior aprox. 6 mm
Baja opacidad de humos según EN 61034-2 No
Libre de halógenos según EN 60754-1/2 No
Resistente al aceite según EN IEC 60811-404 No
Resistente al aceite según IEC 60811-404 No
Superficie del conductor Descubierto
Cable con obturación longitudinal No
Cable con obturación radial No
Clase de reacción al fuego según EN 13501-6 Ninguno
Reacción al fuego según EN 13501-6: Producció Ninguno
Reacción al fuego según EN 13501-6: Gotas/par Ninguno
Reacción al fuego según EN 13501-6: Acidez Ninguno
Radio de curvatura mín. permitido, uso flexib 90.0 mm
Radio de curvatura mín. permitido, instalació 36.0 mm
Especificación aislamiento del conductor Otros
Especificación del material de cubierta Otros
Geometría del cable Redondo
Identificación de los conductores aislados se No
Certificado para aplicaciones marinas No
Compatible con Grade2TV según XP-C 90-483 No
Compatible con Grade3TV según XP-C 90-483 No

Embalaje 1

  • Cantidad mínima embalaje: 1
  • Cantidad máxima embalaje: 1
  • Medidas: 0,00 x 0,00 x 0,00 (m)
  • Volumen: 0,00 m3
  • Peso: 0,00 kg
