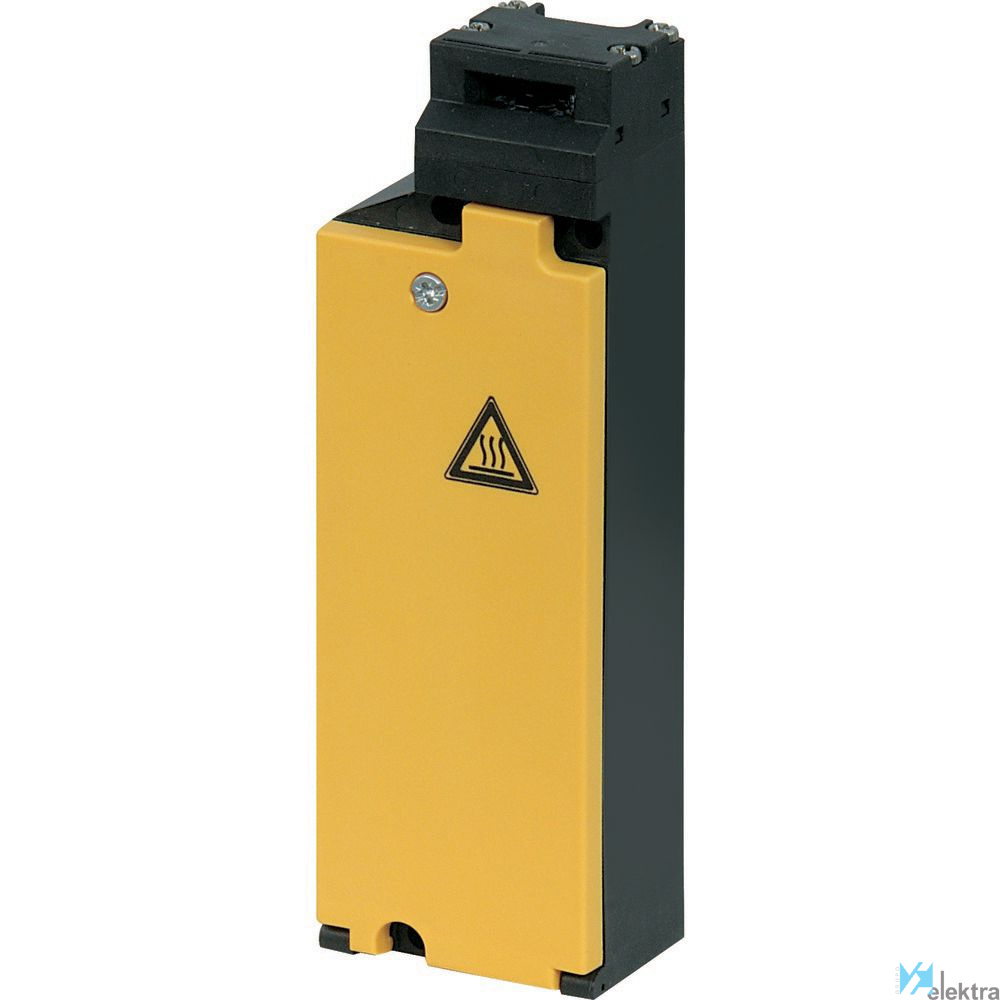

EATON 106828 LS-S11-230AMT-ZBZ/X Final Carrera

GAMA: Moeller series

EATON 106828 LS-S11-230AMT-ZBZ/X Final Carrera

Position switch, Basic function: Position switches, Safety position switches, Part group reference: LS…ZBZ/X, Product range: Basic devices with magnet-powered interlock (open-circuit principle), Degree of Protection: IP65, Features: Basic device, expandable, Ambient temperature: -25 - +40 °C, Description: With interlock monitoring, Monitoring of door position: continuous, Time control of the release operation possible using ESR5-NV3-30, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Rated control voltage for magnetic drive: Us= 230 V 50/60 Hz V , Housing: Insulated material, Connection type: Screw terminal, Standards: IEC/EN 60947
