EATON 266121 LSE-11 Int. Posicion,Piston,1C+1

GAMA: Moeller series

EATON 266121 LSE-11 Int. Posicion,Piston,1C+1

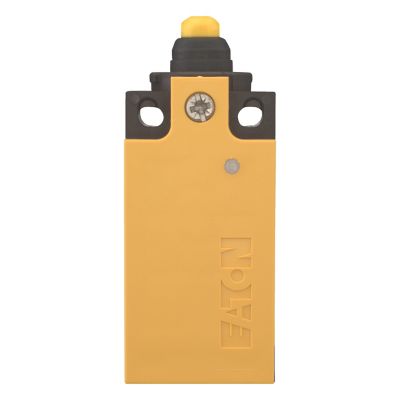

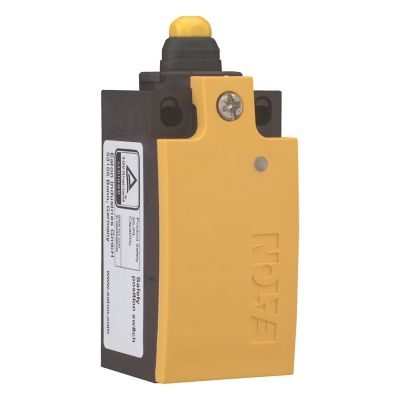

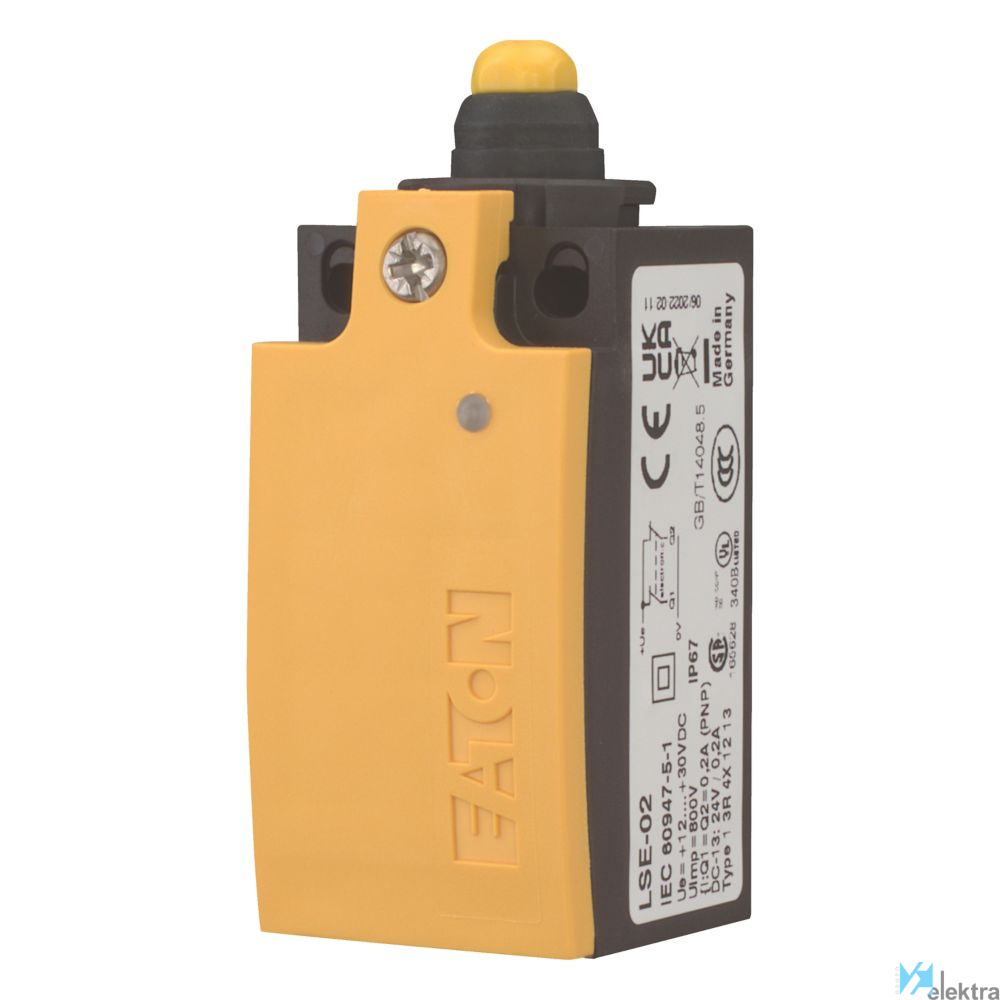

Safety position switch, Basic function: Position switches, Safety position switches, Part group reference: LSE, Product range: Position switch with electronically adjustable operating point, Degree of Protection: IP66, IP67, Features: Basic device, expandable, Ambient temperature: -25 - +70 °C, Description: Visual status indication, comparable with positive opening function, Device goes into safe state on high interference., Can be used in safety circuits, partly short-circuit proof, Restart after reset, Individual operating point adjustment, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Ue= 12 - 30 V DC , Color Enclosure covers: Yellow, Housing: Insulated material, Connection type: Cage Clamp, Cage-Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden, Germany., Accessories for the Cage-Clamp terminals from Wago:power comb, gray, Wago Article No. 264-402, Standards: IEC/EN 60947, EN 61000-4
