0507268 PANDUIT IT9115-CUV7A Brida Purpura Cable Tie 15.3P
0507268 PANDUIT IT9115-CUV7A Brida Purpura Cable Tie 15.3P
  • Control Edificios
  • VDI
  • VDI ELEMENTOS PASIVOS
Cod. 0507268   EAN 0074983504039

PANDUIT

PANDUIT IT9115-CUV7A Brida Purpura Cable Tie 15.3P

Entrega a consultar

  (Ver +)

Múltiplo venta: 100,00 uds.

767,77€/M



Impuestos no incluidos.

Si estás buscando algún producto con urgencia y no lo encuentras, ponte en contacto con nosotros y trataremos de conseguírtelo rápidamente.

Puedes escribirnos un email o llamarnos por teléfono:

Buscar Punto de Venta

PANDUIT IT9115-CUV7A Brida Purpura Cable Tie 15.3P

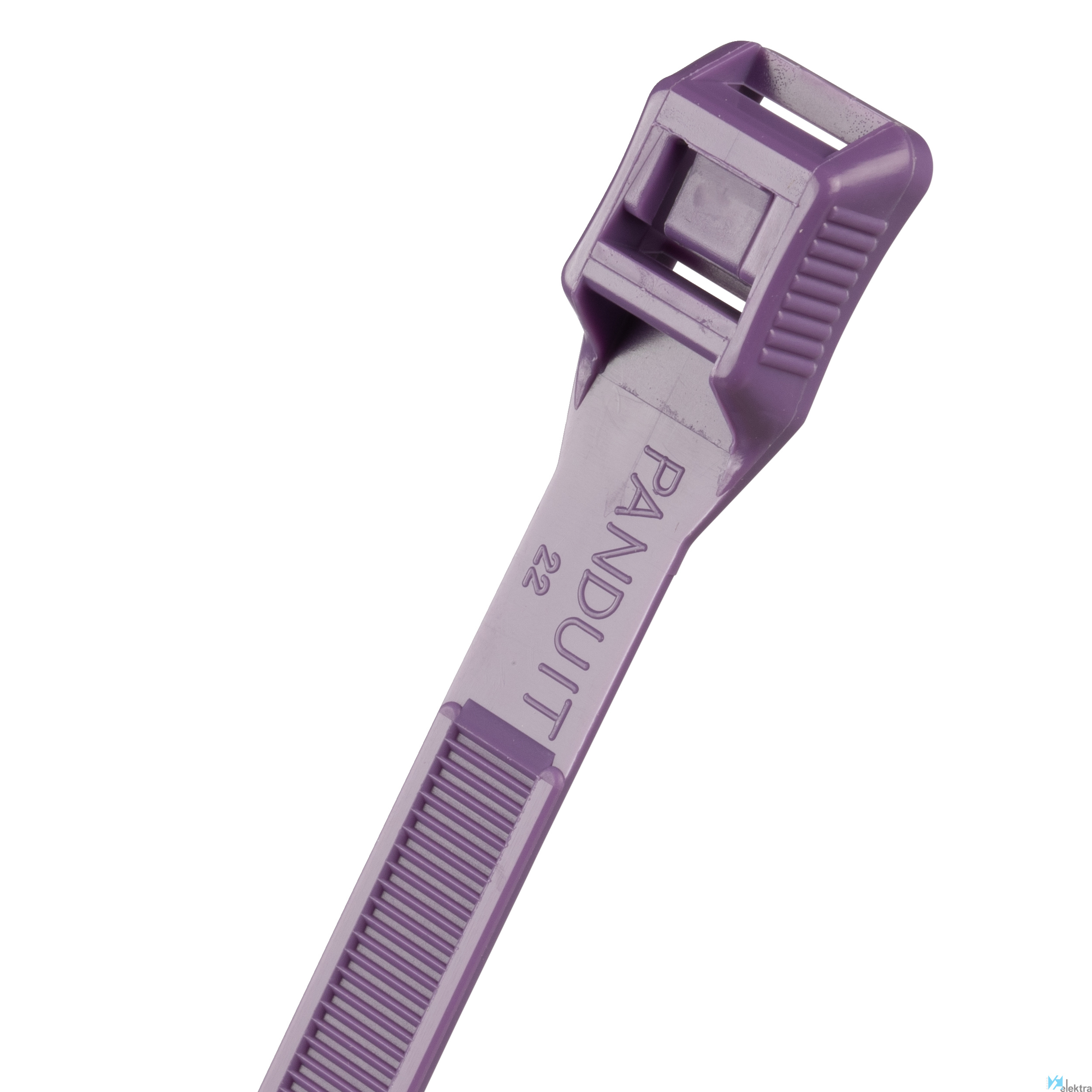

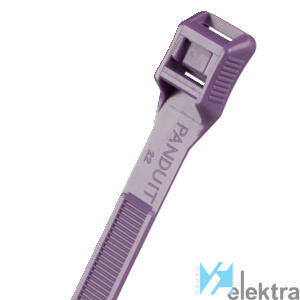

Cable Tie, In-Line, 15.3 Inches (389 mm) Length, Light-Heavy, Weather Resistant Nylon 6.6, Purple color to match the foam. Lasts 2-3 times longer than normal pigmented colors. No protruding head to cause injury since head is inverted. No protruding tie tip to cause injury since the tip is trapped between the tie and the foam. Tie will not slip on the foam since the head will indent the foam to remain captive. Wide tie body 0.35 inch (8.9 mm) for improved aesthetics. Cannot over-tension tie causing bulges in the foam. Install by hand or use Panduit GTH-E installation tool. Flexible and easy to handle and install. No need to heat weld the ends closed. No cut-off scrap pieces to handle or pick up. Strong 124 pound (552 Newton) minimum loop tensile strength. Locking wedge is protected from unlocking and from ultraviolet light exposure. Ties are installed with the teeth on the inside against the foam.

Características detalladas

Mínima resistencia a la tracción 552 N
Transparente No
Modelo Dentado externo
Aprobación UL No
Cierre de cinta Borde/abrazadera de plástico
Libre de halógenos Sí
Calidad del material Poliamida (PA)
Espesor de la cinta 1.7 mm
Clase de inflamabilidad de material aislante V2
Diámetro máximo del paquete 115
Color Violeta
Área de impresión Ninguno
Estable a los rayos UV según ASTM D6779 Sí
Temperatura de instalación -20 ~85 °C
Aprobación de VG No
Tratamiento de superficie Sin tratamiento
Ancho de la banda 8.9 mm
Cierre desmontable No
Tipo de fijación Ninguno
Temperatura de operatividad -60 ~85 °C
Material Plástico
Longitud de la banda 389 mm
Homologación MIL No
Fluorescente No

Embalaje 1

  • Cantidad mínima embalaje: 1000
  • Cantidad máxima embalaje: 1000
  • Medidas: 0,46 x 0,26 x 0,05 (m)
  • Volumen: 0,00 m3
  • Peso: 0,73 kg
