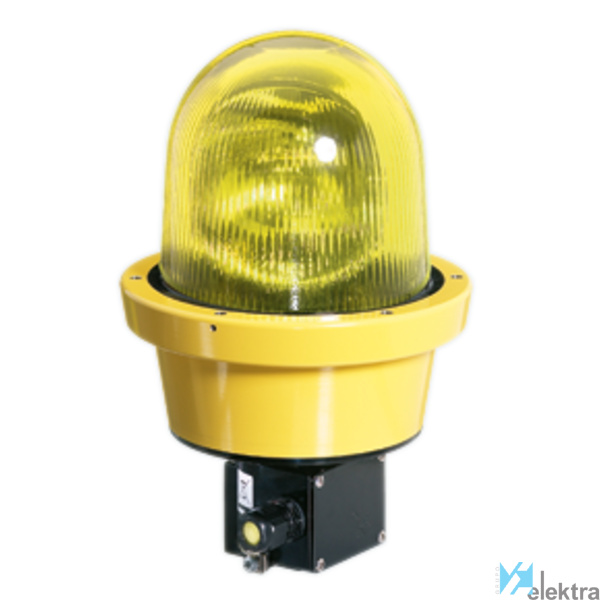

STAHL 201879 Beacon LED continuo 6162/19-55-111

STAHL 201879 Beacon LED continuo 6162/19-55-111

Visual signalling device LED continuous beacon | Explosion-protected | Type : 6162/19-55-111 | Enclosure material : Aluminium, powder-coated | Seawater-resistant | Enclosure colour : Yellow / black, powder-coated | Dome material : Glass | Temperature-resistant | Lens colour : Yellow | Number of lamps : 1 | Lamp : LED | Flash rate : - | Back-up fuse : - | DC rated operational voltage : 24,00 V | Nominal current at DC : 0,2 A | Application range (zones) : 1 , 2 , 21 , 22 | Gas explosion protection : | II 2 G Ex de IIC T6 / T6 / T5 Gb | Dust explosion protection : | II 2 D Ex tb IIIC 70 °C / 80 °C / 90 °C Db | Scope of validity : European Union (ATEX) | EAC | IECEx | Min. ambient temperature : -20 °C / -20 °C / -20 °C | Max. ambient temperature : +40 °C / +50 °C / +60 °C | Degree of protection (IP) : IP66 | IP degree of prot. (IEC 60529): IP66 | part material : to be ordered as accessory | Screw connections : 1 x M20 x 1.5 | Stopping plug : 1 x M20 x 1.5 | Height : 316 mm | Width : 210 mm | Length : 210,000 mm | For further information, see : r-stahl.com WebCode 6162A
