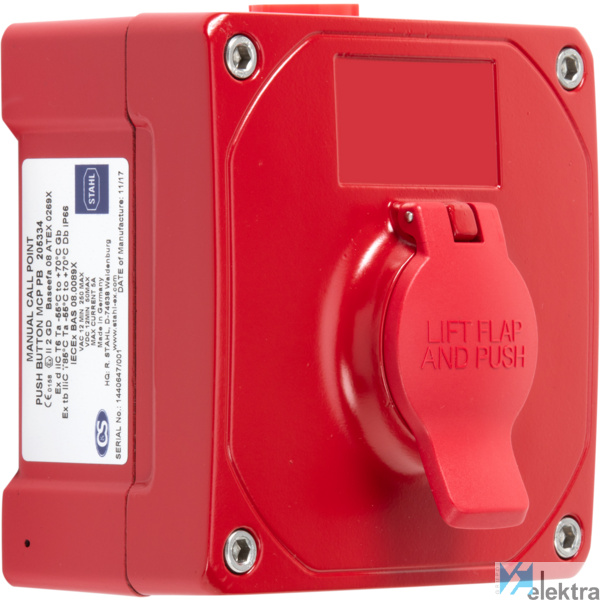

STAHL 205334 MCP/PB/SP/Ex/A+B+C+D/EU/R Pulsador AT

STAHL 205334 MCP/PB/SP/Ex/A+B+C+D/EU/R Pulsador AT

Manual call point Flameproof | Explosion-protected | Type : MCP/PB/SP/Ex/A+B+C+D/EU/R | Version : Pushbutton | - | - | Enclosure material : Polyester (GRP) Glass fibre reinforced | Enclosure colour : Red (RAL 3001) | AC rated operational voltage : 12,00 - 250,00 V | DC rated operational voltage : 12,00 - 50,00 V | Contacts : 1 change-over contact | Drilled holes : 4 x M20 | cable entries : Can be ordered as accessories | Stopping plug : 3 x M20 x 1.5 | Stopping plug material : Brass | Option 1 : - | Min. ambient temperature : -40 °C | Max. ambient temperature : +70 °C | IP degree of prot. (IEC 60529): IP66 | Application range (zones) : 1 , 2 , 21 , 22 | Gas explosion protection : II 2 G Ex d IIC T6 Gb | Dust explosion protection : II 2 D Ex tb IIIC T85 °C Db | Dimensions (L x W x H) : 132,5 x 132,5 x 74 mm | For further information, see : r-stahl.com WebCode MCPA
