STAHL 225105 YL6S/C-L-050-A-EN 115V DC 110dB(A) 5J

STAHL 225105 YL6S/C-L-050-A-EN 115V DC 110dB(A) 5J

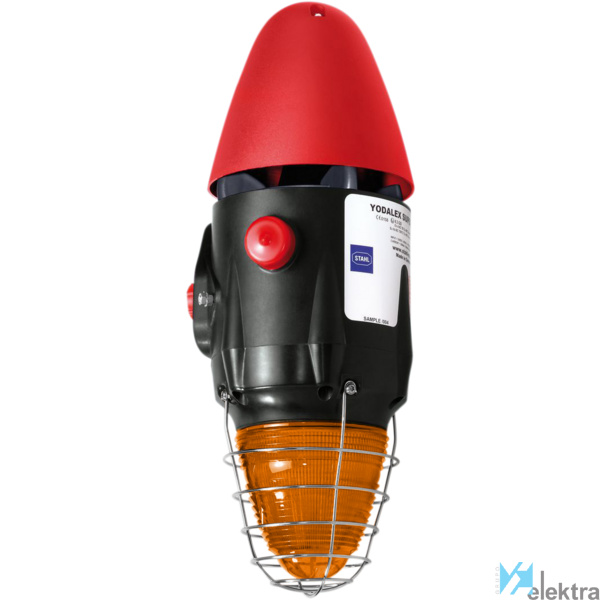

Combined signal device | Xenon horn/flashing beacon | In flameproof enclosure | Explosion-protected | Type : YL6S/C-L-050-A-EN-SF-A-ST-00- | Enclosure material : Polyester | Glass fibre reinforced | Enclosure colour : Black | Dome material : Polycarbonate, prismatic | AC rated operational voltage : 115 V | DC rated operational voltage : 0 V | Tolerance : -10 … 10 % | Rated oper curr, flash. beacon: 204 mA | Rated oper. current, horn : 76 mA | Rated operational current : 280 mA | Lamp : Xenon flash tubes | Lens colour : Orange | Flashbulb : 5 J | Flash rate : 1 Hz | Number of lamps : 1 | Volume control : 18 dB (A) adjustment | IP degree of prot. (IEC 60529): IP66/IP67 | Application range (zones) : 1 , 2 , 21 , 22 | Gas explosion protection : II 2 G Ex d IIC T5/T4 Gb | Dust explosion protection : II 2 D Ex tb IIIC T95 °C /T110 °C Db | Min. ambient temperature : -60 °C / -60 °C | Max. ambient temperature : +40 °C / +55 °C | Min. service temperature : -40 °C | Max. service temperature : +45 °C | Option 1 : - | part material : Provided | Screw connections : Can be ordered as accessories | Stopping plug : 2 x dust cap | For further information, see : r-stahl.com WebCode YL6SA
