STAHL 225150 FL6S/C-D-050-A-EN 24V DC IIC 5J ambar

STAHL 225150 FL6S/C-D-050-A-EN 24V DC IIC 5J ambar

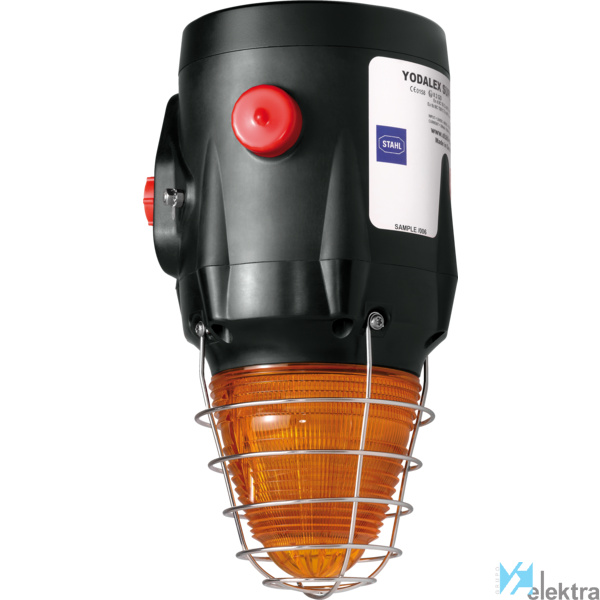

Visual signalling device Xenon flashing beacon | Explosion-protected | Type : FL6S/C-D-050-A-EN-SF-A-ST-00 -00-00 | Enclosure material : Polyester (GRP) | Glass fibre reinforced | Enclosure colour : Black | Dome material : Polycarbonate, prismatic | Lens colour : Orange | Number of lamps : 1 | Lamp : Xenon flash tubes | Flashbulb : 5,0 J | Flash rate : 1 Hz | Back-up fuse : - | DC rated operational voltage : 24,00 V | Tolerance : -10,0 - 10,0 % | Nominal current at DC : 0,32 A | Application range (zones) : 1 , 2 , 21 , 22 | Gas explosion protection : | II 2 G Ex d IIC T6 / T5 / T4 Gb | Dust explosion protection : | II 2 D Ex tb IIIC 73 °C / 88 °C / 103 °C Db | Scope of validity : European Union (ATEX) | IECEx | Min. ambient temperature : -60 °C / -60 °C / -60 °C | Max. ambient temperature : +40 °C / +55 °C / +70 °C | Degree of protection (IP) : IP66 | IP degree of prot. (IEC 60529): IP66/IP67 | part material : Provided | Screw connections : Can be ordered as accessories | Stopping plug : 2 x dust cap | Height : 287,5 mm | Width : 178,5 mm | Length : 148,000 mm | For further information, see : r-stahl.com WebCode FL6SA
