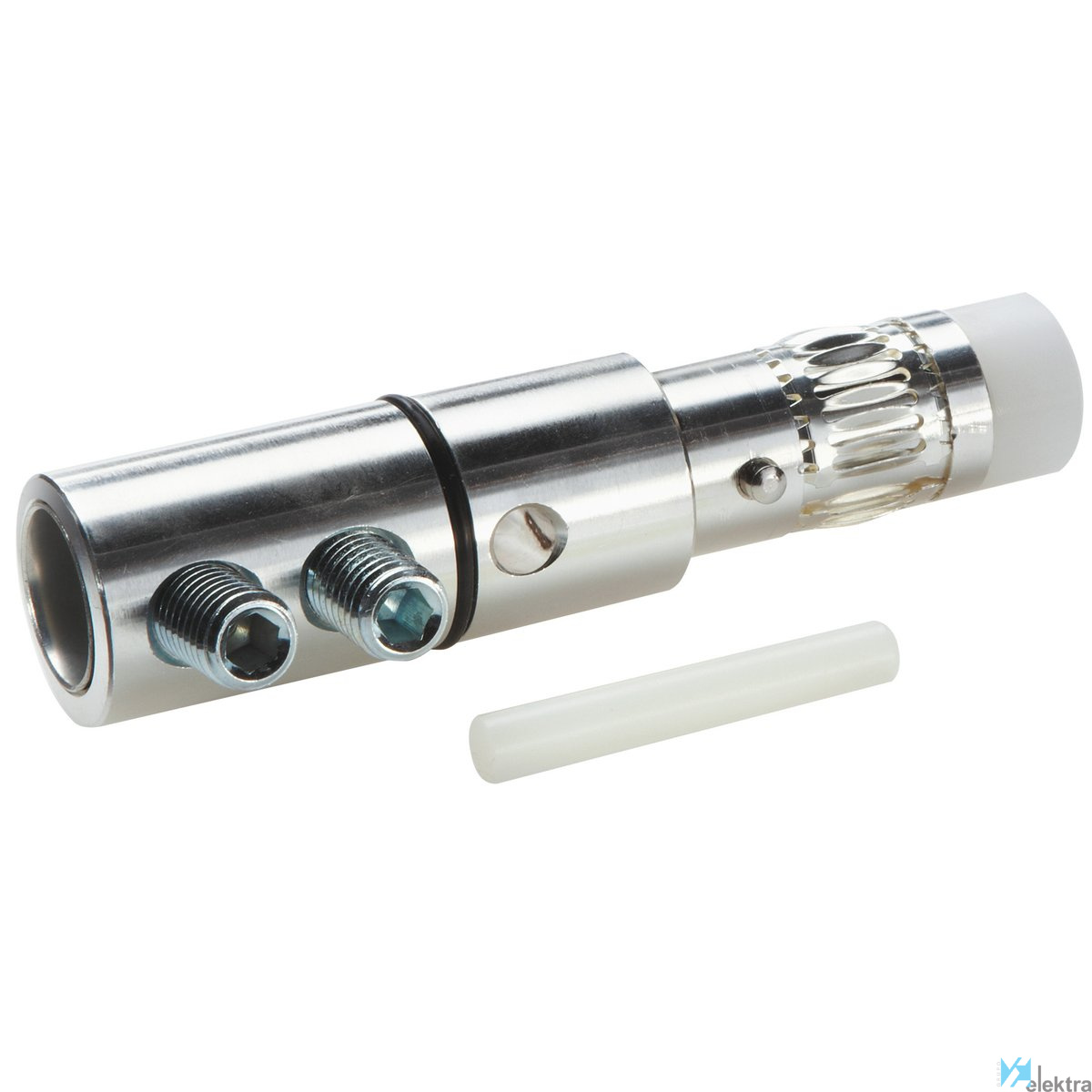

LAPP 44420237 EPIC POWERLOCK QS 120 (1)

LAPP 44420237 EPIC POWERLOCK QS 120 (1)

Contact EPIC® POWERLOCK QS 120 (1); Contact for housing size: Powerlock D6 S; ; Source; Screw connection; For cross-section (min./max.): 50mm² - 120mm²; Brass Silver-plated; Anwendungsgebiete: For use with unscreened single cores;Withstands moderate mechanical stress;Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems ;Suitable for three-phase and direct current applications The maximum current strength in combination with screw contacts is 400 A; the maximum current strength in combination with crimp contacts is 660 A ;Suitable for electric motors and cooling units; Nutzen: M12 threaded post contact for tube cable lug contact Contact drain for use with type A1; contact source for use with design type A6 (depending on application either screw or crimp);Screw contact for easy-to-service connection without special tools Screw contact drain for use with type F6 S; screw contact source for use with type D6 S Screw contacts are intended for conductor cross-sections up to 120 mm² For smaller conductor cross-sections up to 50 mm², a diameter reduction must be used ;Crimp contact ensures maximum contact reliability between the contact and the cable and establishes a vibration-resistant connection Different contact sizes available for conductor cross-sections from 35 to 240 mm² Crimp contact, drain for use with type F6 C; crimp contact source for use with type D6 C ;All contacts are supplied with contact retention pin for fastening the contact to the panel-mount base
