LAPP 44420282 POWERLOCK BOX A1 S (1)

LAPP 44420282 POWERLOCK BOX A1 S (1)

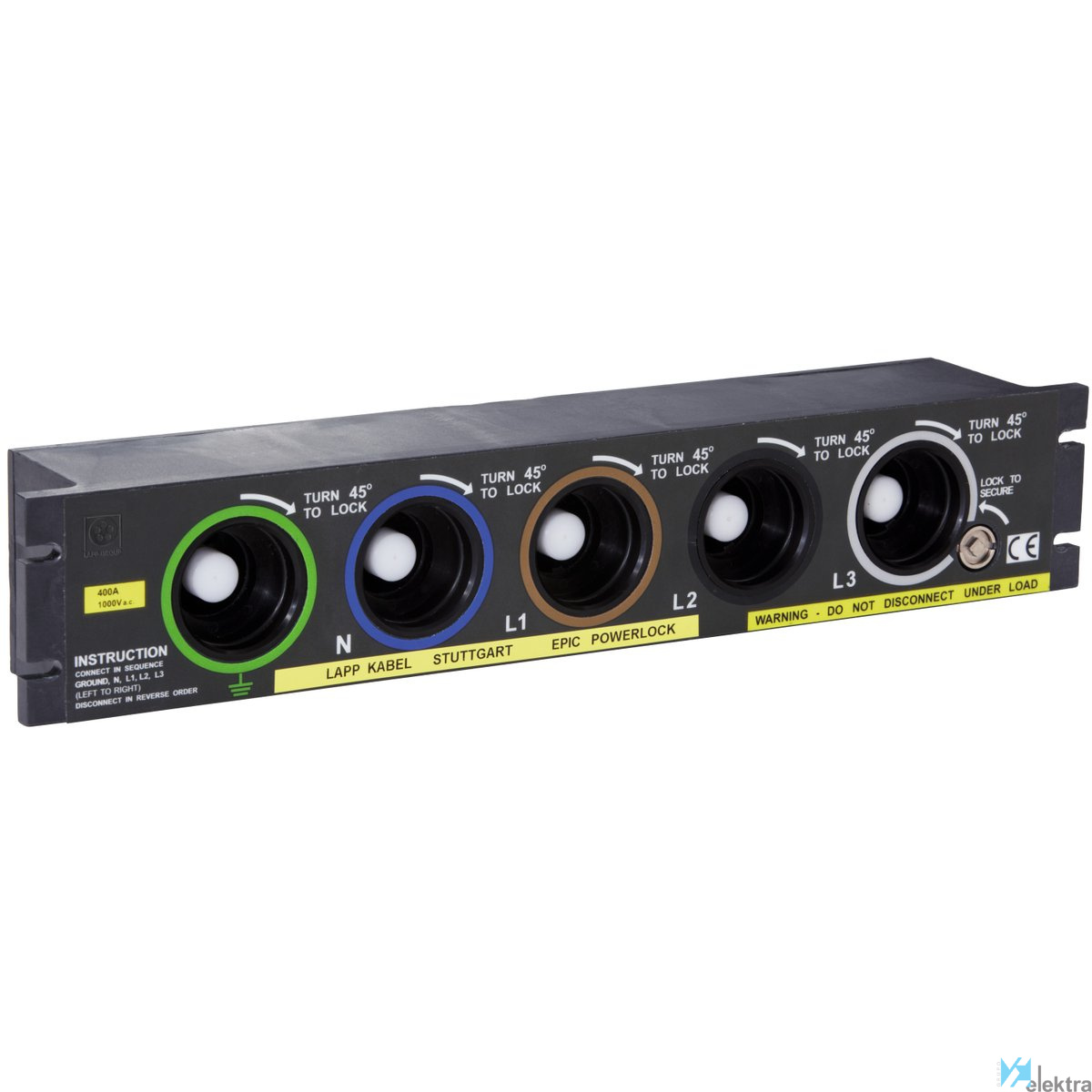

Panel-mount base POWERLOCK BOX A1 S (1); Panel-mount base; For cross-section (min./max.): 50mm² - 120mm²; ; Anwendungsgebiete: For connecting single-pole EPIC® POWERLOCK circular connectors ;Suitable for outdoor use;Suitable for three-phase and direct current applications up to 400 A ;For use with unscreened single cores;Withstands moderate mechanical stress;Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems ;Suitable for electric motors and cooling units; Nutzen: Protection class IP 20 (finger-safe); IP 65 if cover is closed Made of robust, high-temperature-resistant thermoplastic;Unauthorised disconnection of the safe connection can be prevented by closing the safety lock with a square spanner The connection is maintained until the lock is unlocked ;For conductor cross-sections up to 120 mm²;VDE-tested quality;Connectors can only be plugged in sequence and in the correct order (PE, N, L1, L2, L3) The connector locks audibly by turning it 45° clockwise ;The power supply connection is made using tube cable lugs at the rear of the box via the integrated M12 threaded post contacts ;With integrated microswitch for optional remote query (eg for load disconnector or alarm cable) The connector for connecting the micro switch is included;Available in versions with or without a safety cover Safety cover provides additional protection against environmental influences when not plugged in ;Easy fastening using 4 fastening screws in standard 19" frames ;Mechanical coding and colour-identification of the housing entries prevent incorrect connection of the connectors
